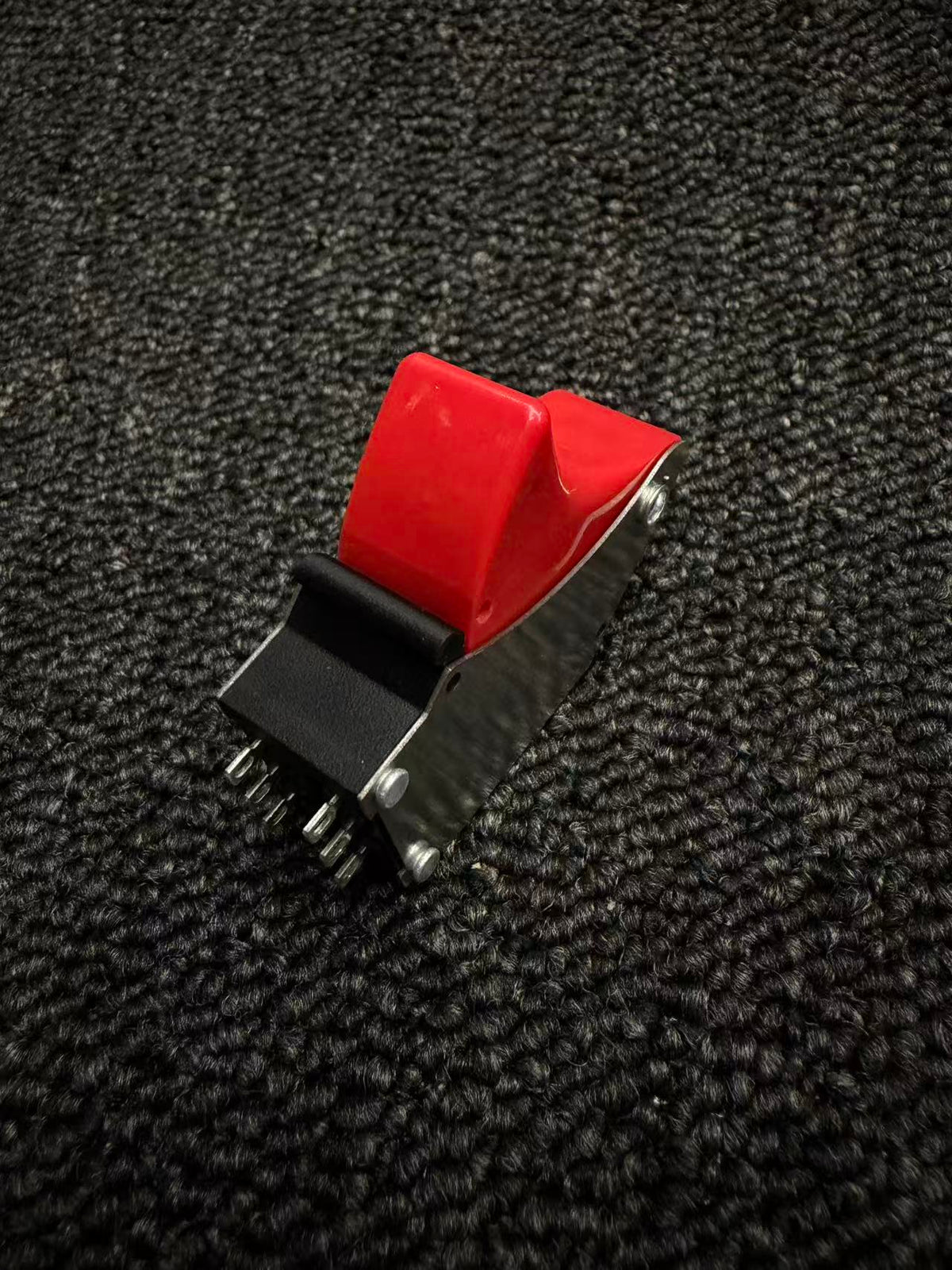

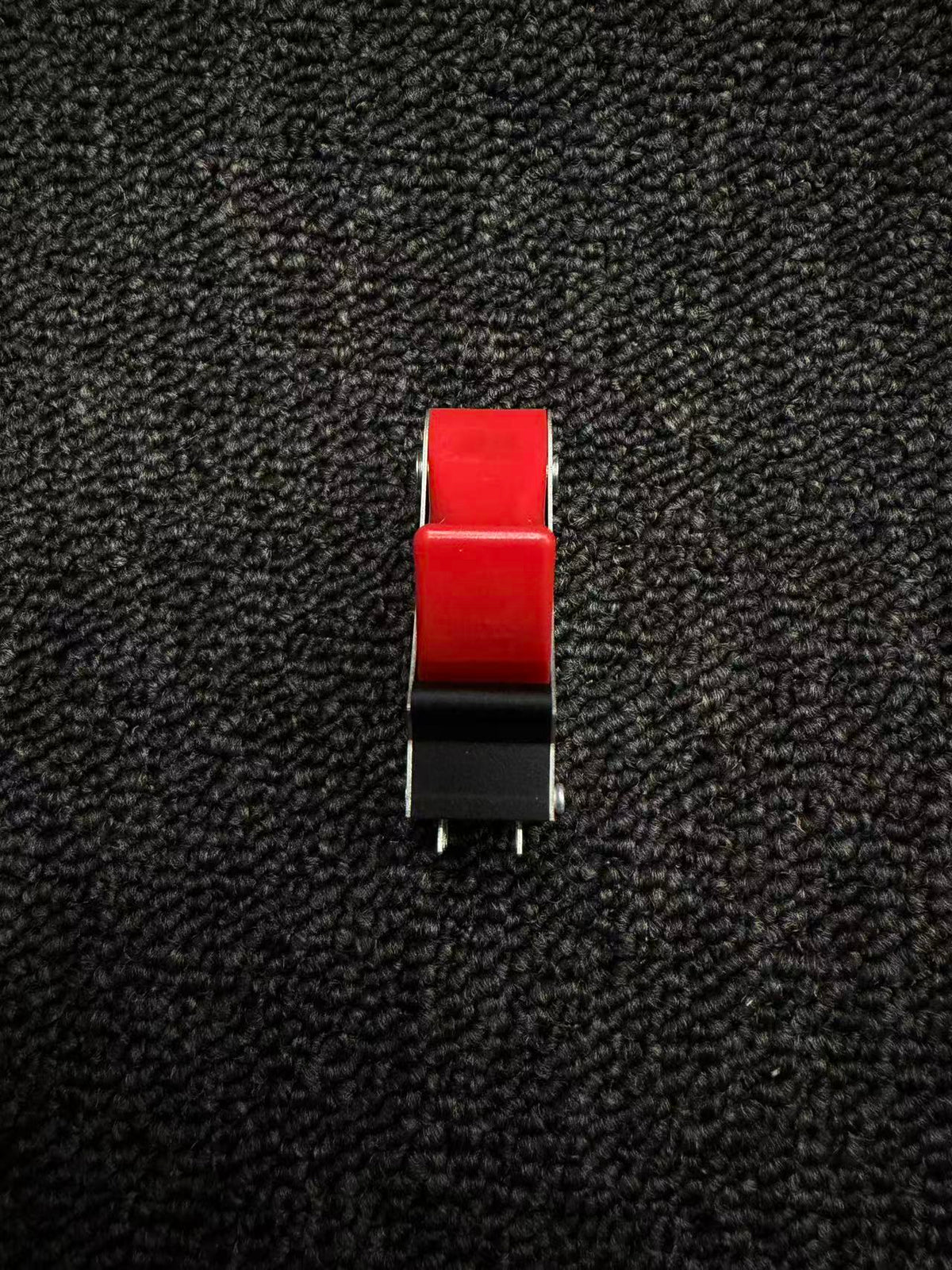

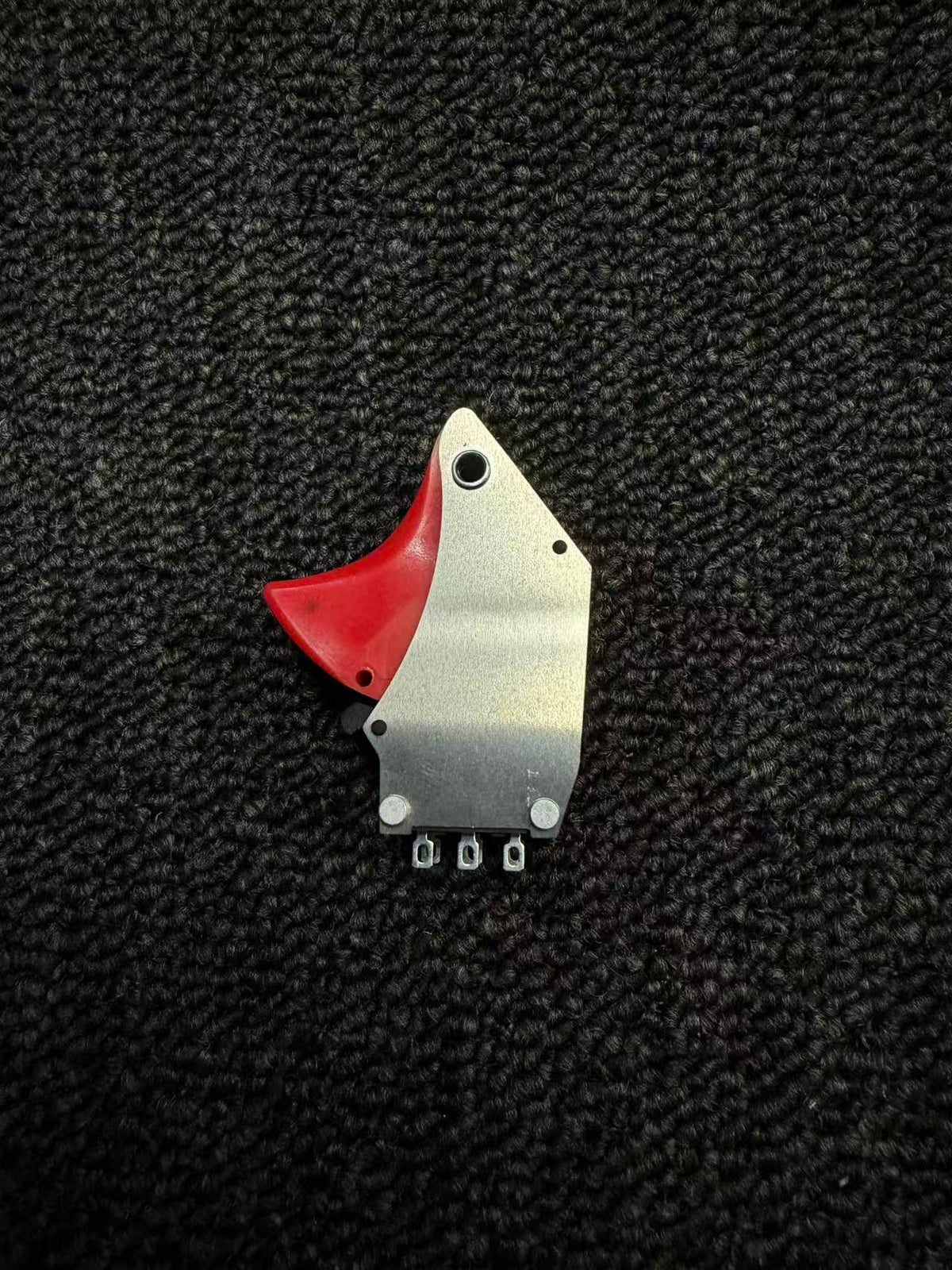

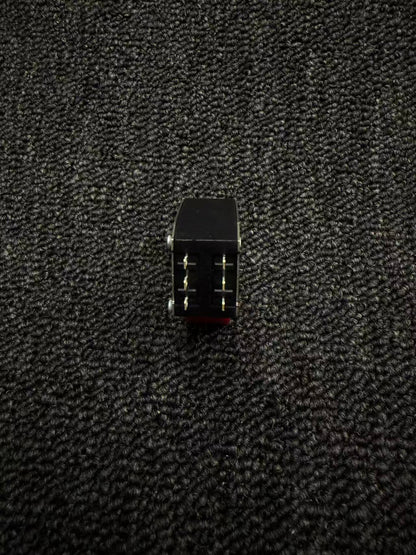

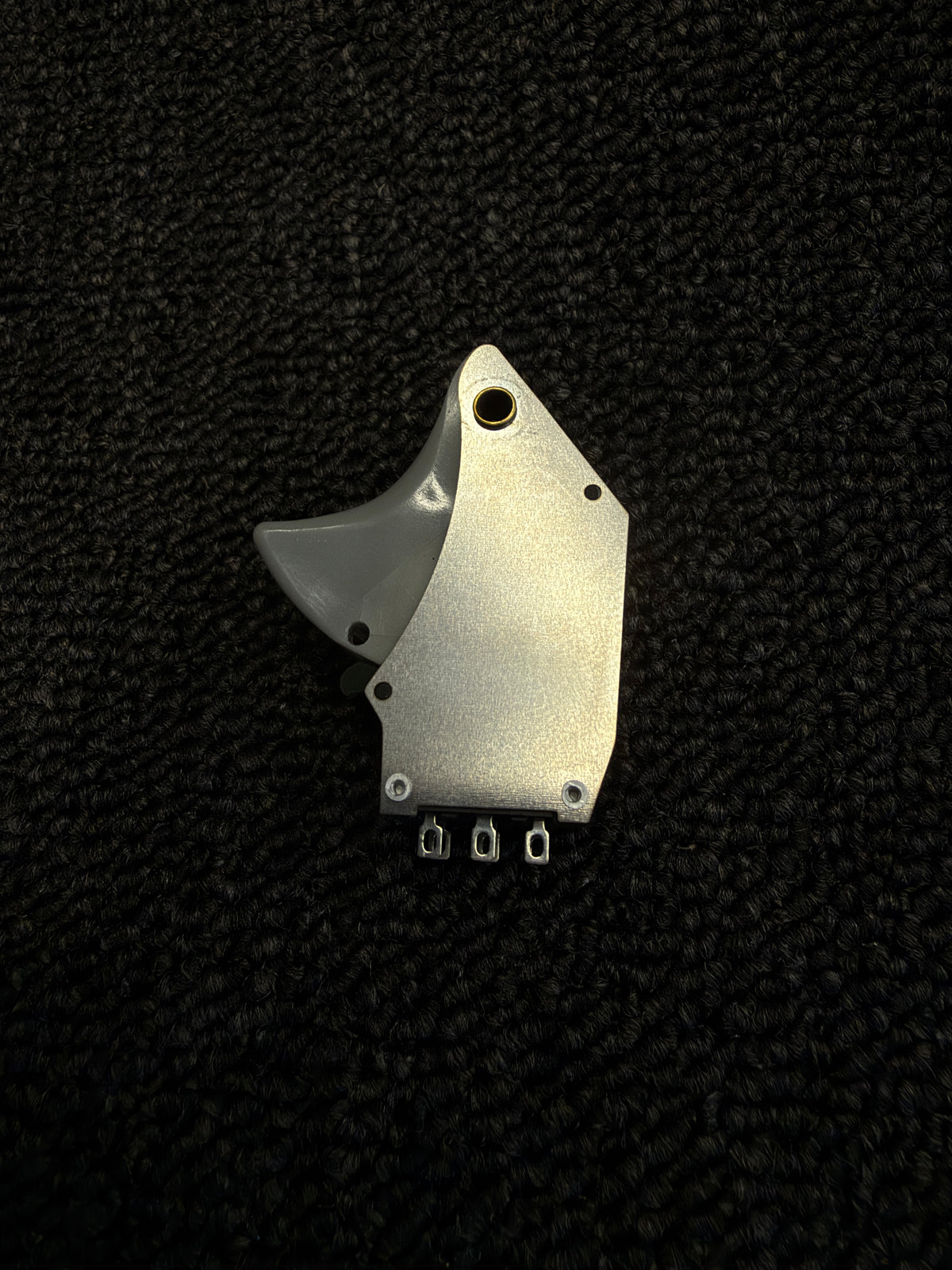

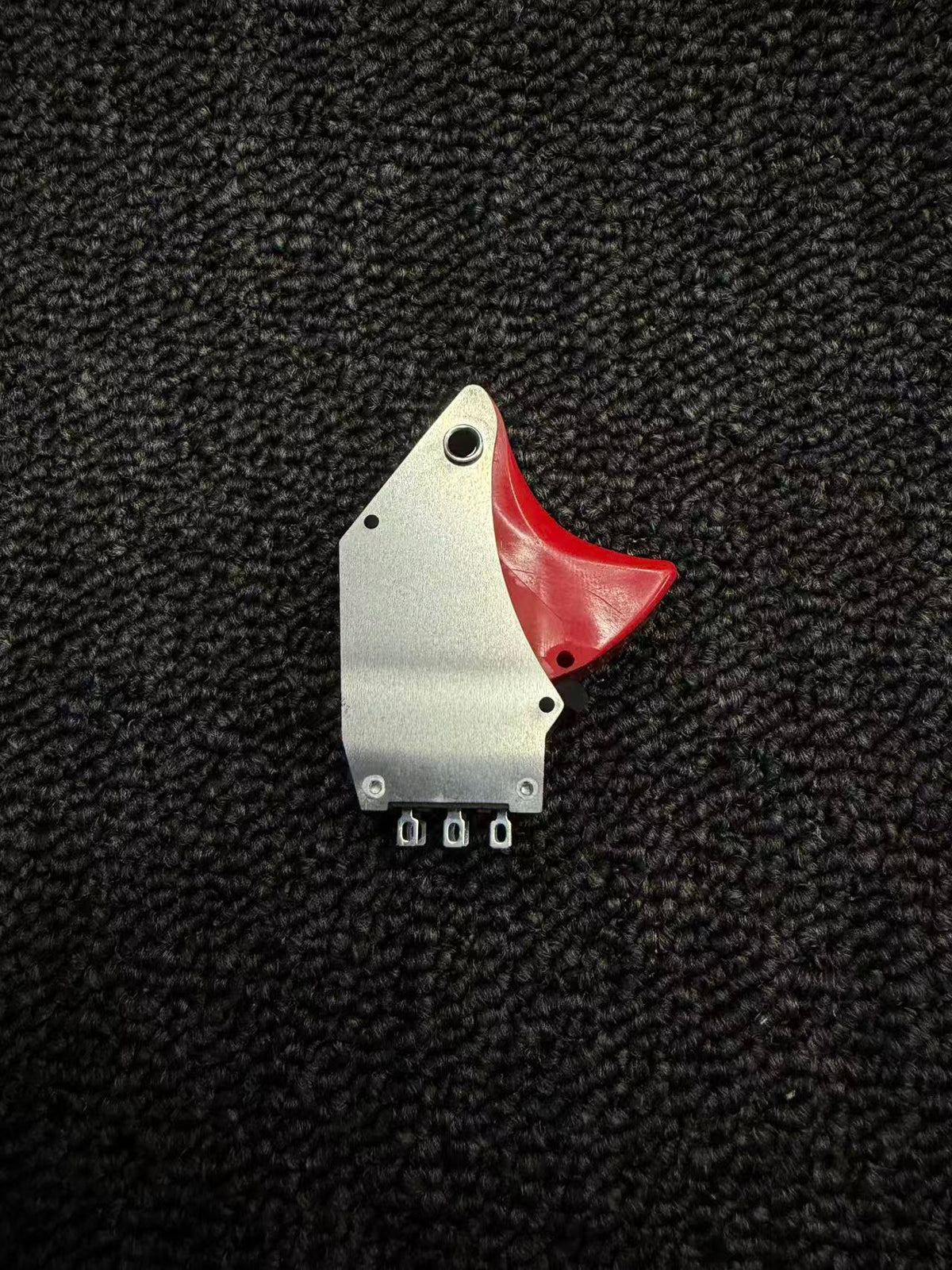

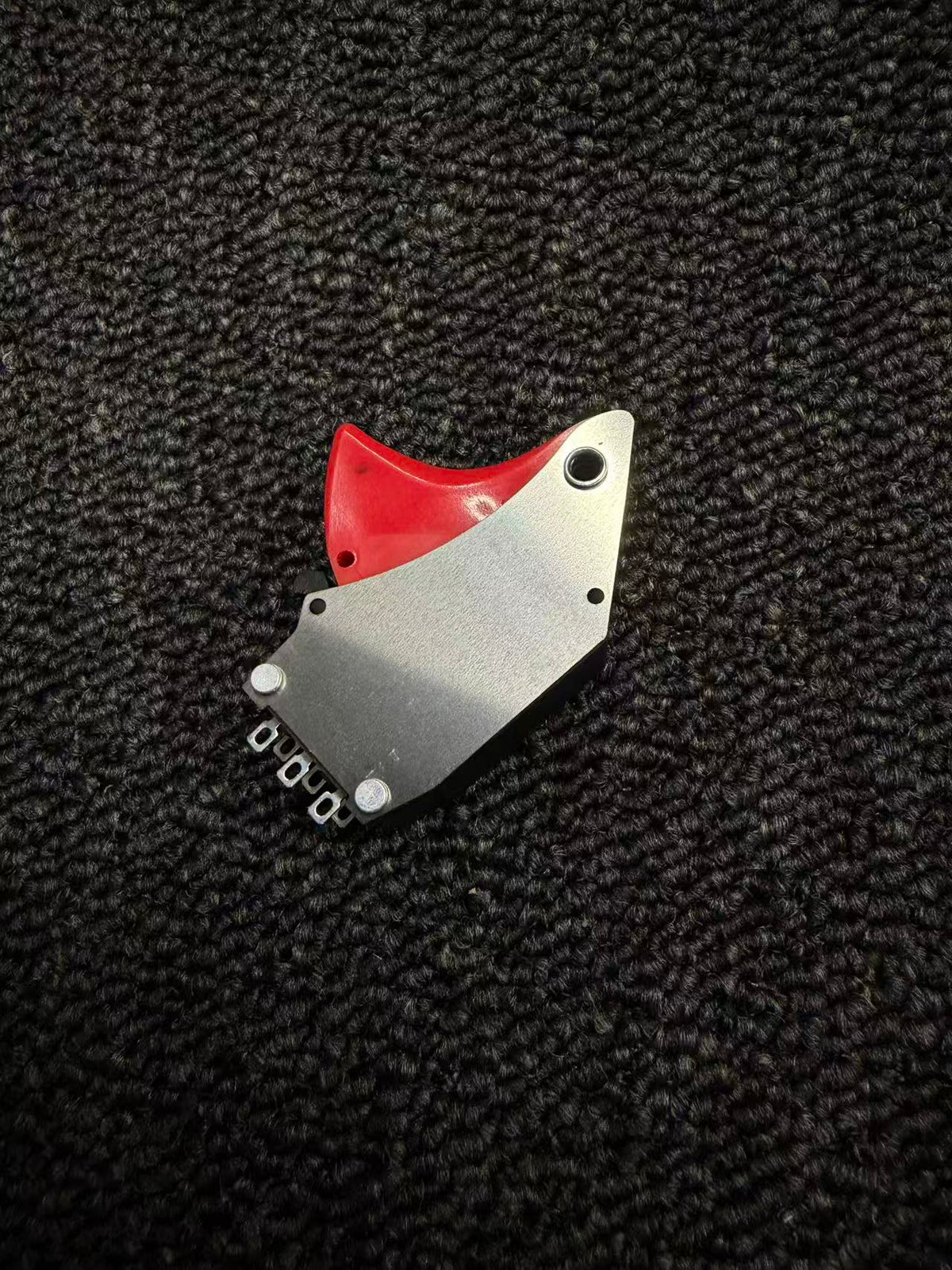

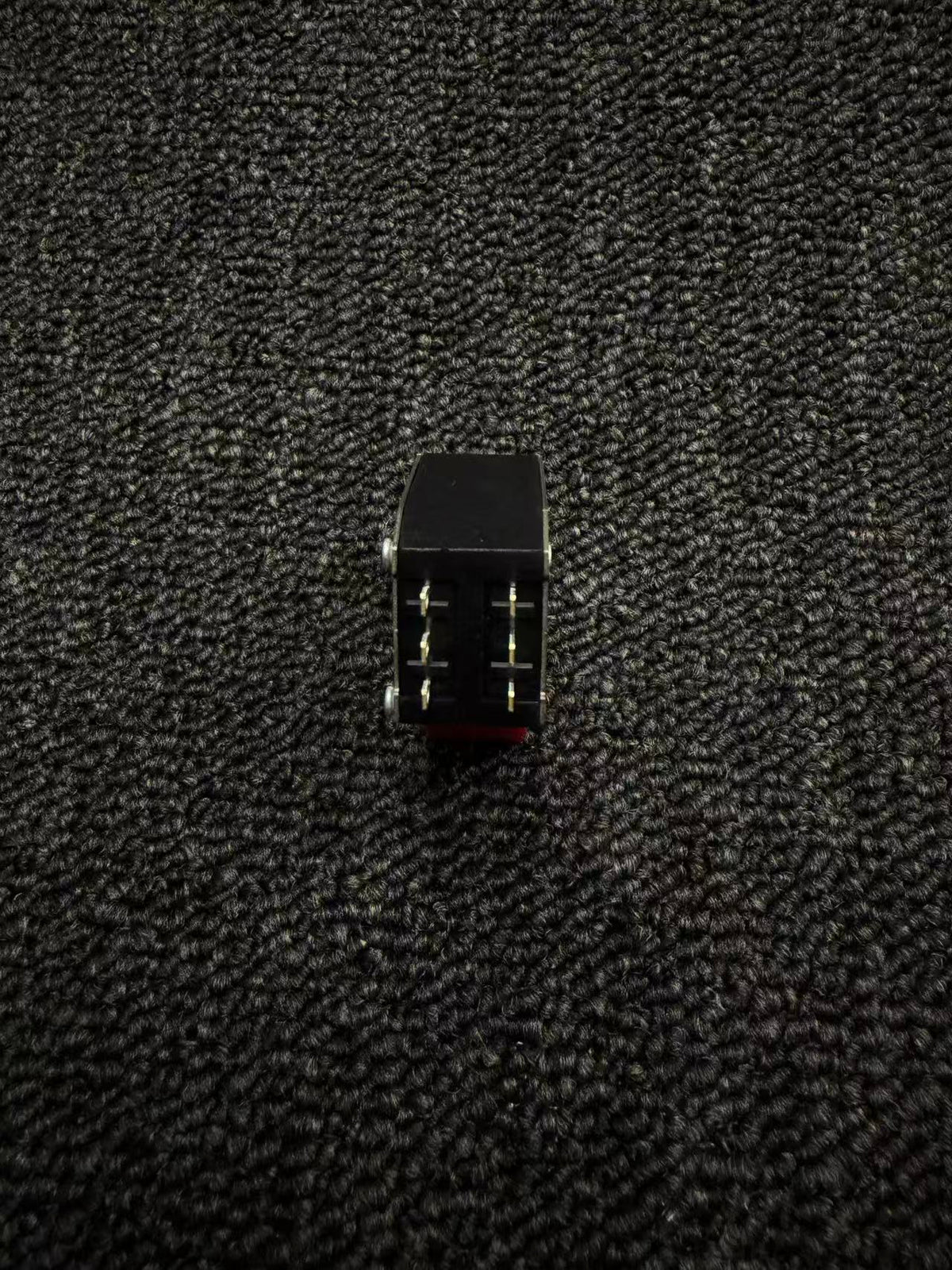

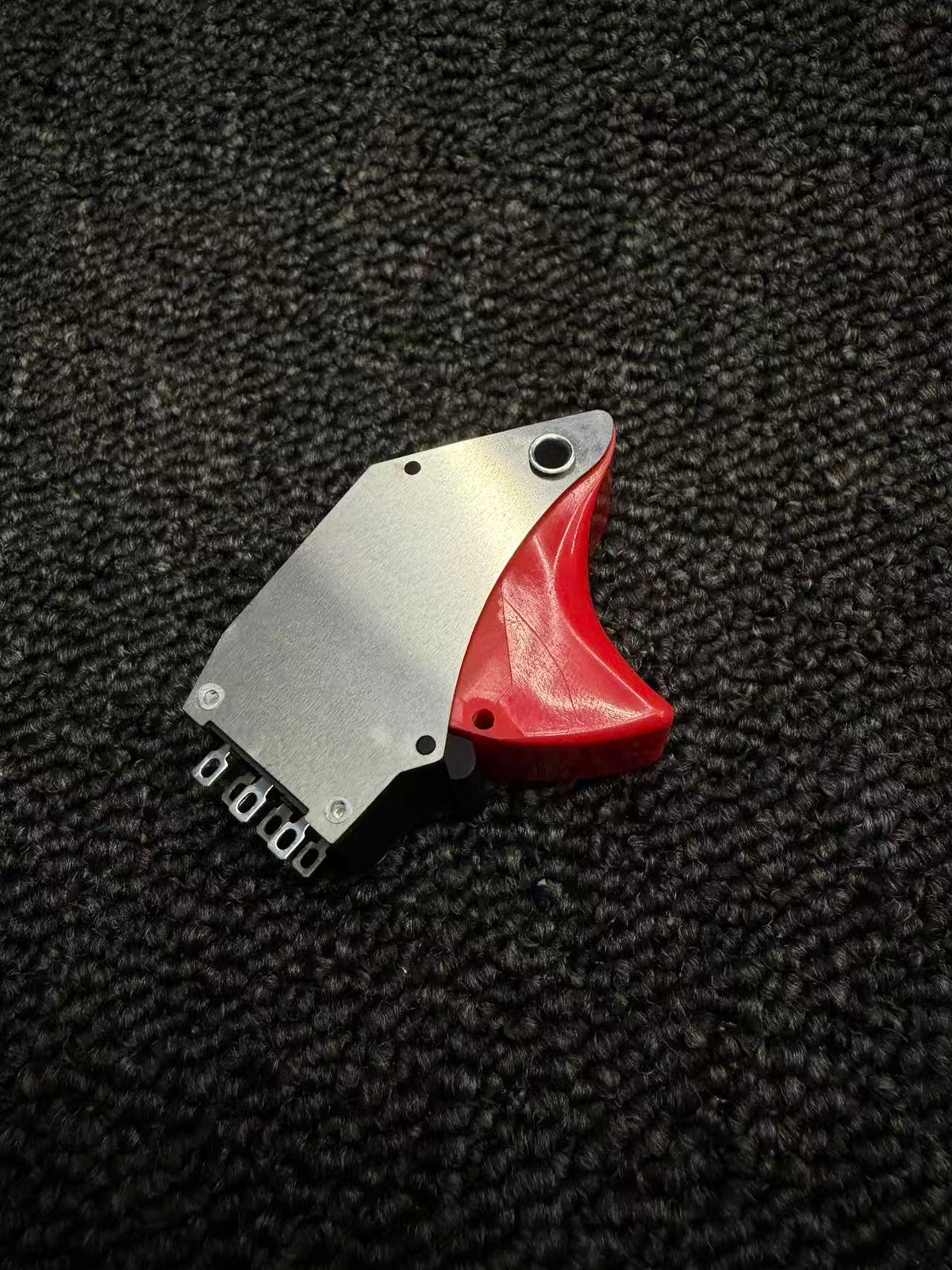

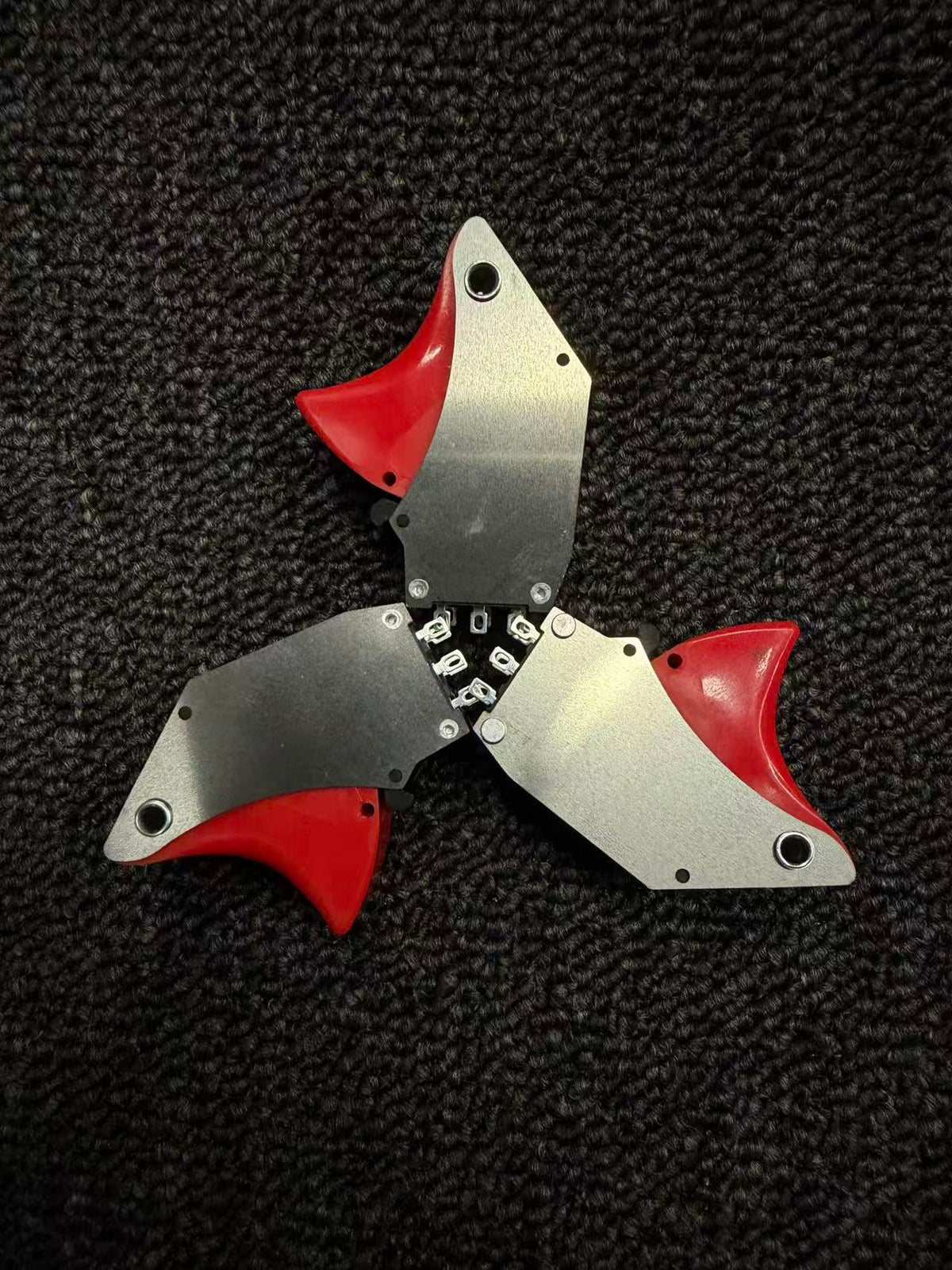

The operating force required to close the contacts (first-stage actuation) of this precision trigger switch is approximately 2.25 lbs; overcoming the detent requires approximately 6.5 lbs of force, while continuing the travel beyond the detent requires approximately 6.0 lbs. It features a black plastic housing, a red plastic trigger button, and a 304 stainless steel side cover. Model TH-U2-016 has a top shaft diameter/width of 17.5 mm and an overall body width of 16.8 mm. Two-step trigger Operating force to engage first-stage contacts: approx. 2.25 lbs Operating force to overcome detent and engage second-stage contacts: approx. 6.5 lbs Width: 16.8 ± 0.2 mm Rated load: 1 A at 24 VDC (resistive load) Electrical life: up to 50,000 cycles RoHS compliant Non-sealed type
The above specifications are based on manual measurements and may vary slightly;
